Each of the Orion-Tr Smart Converters can be monitored and programmed via Bluetooth and can be remotely controlled by remote on/off switch.

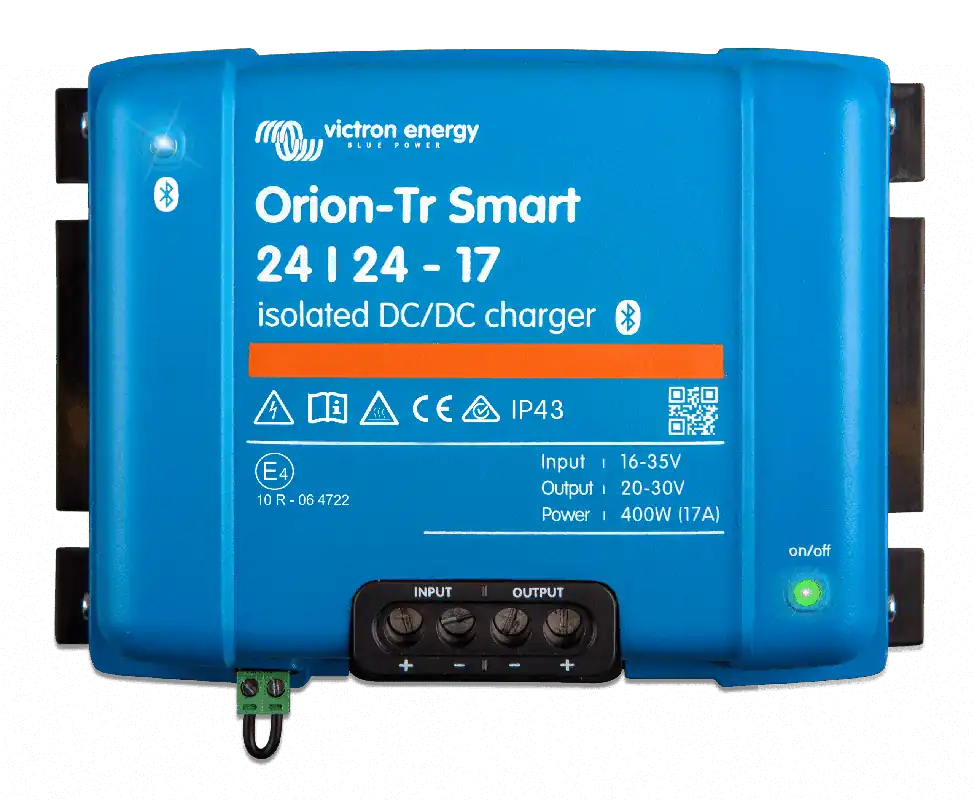

The Victron Orion-Tr Smart 24/24-17A DC-DC isolated converter – ORI242440120 can be used in 12V or 24V systems and is suitable for both lead-acid and lithium batteries.

Models up to 400 W are available and an unlimited number of units can be connected in parallel to increase the power output.

Designed to operate at high temperatures up to 55°C, with full power output rated up to 40°C.

Bluetooth Smart enabled

Any smartphone, tablet or other Bluetooth-enabled device can be used to monitor, change settings and update the converter when new software features become available.

Fully programmable

– Battery charging algorithm (configurable) or fixed output.
– Intelligent alternator compatibility: engine running detection mechanism.

3-stage adaptive loading algorithm: initial loading – absorption – floating

• In the case of lead-acid batteries it is important that, if discharges are light, the absorption time is short to avoid overcharging the battery. After a deep discharge, the absorption charging time is automatically increased to ensure a full recharge of the battery.
• In the case of lithium batteries, the absorption time is fixed: 2 hours by default.
• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

The integrated motor shutdown detection will stop the inverter when the motor is not running.
This prevents the starter battery from discharging (see manual for details).

Remote On/Off

A remote On/Off switch can be connected to a two-phase connector.
Alternatively, the H (right) terminal of the two-phase connector can be switched to battery positive, or the L (left) terminal of the two-phase connector can be switched to battery negative (or to the vehicle chassis, for example).

All models are short-circuit proof and can be connected in parallel to increase the output current.

An unlimited number of units can be connected in parallel.

Protection against high temperatures:

The output current will be reduced when the ambient temperature is high.

Protection IP43

If installed with the screw terminals facing downwards.

Screw terminals

No special tools required for installation

Input fuse (not replaceable)
