The Orion Converter Victron non-isolated high power 12/24-10 is a device designed to convert the input voltage from 12 volts (V) to 24 V or vice versa, with an output current rating of 10 amperes (A). This type of converter is useful in a variety of applications where it is necessary to match the power supply voltage to the requirements.

Remote on-off connector

• Remote on-off eliminates the need for a high-power switch in the input wiring.
• The remote on-off can be operated by a low power switch or by the engine start switch (see manual).

All models with adjustable output can also be used as a battery charger.

• For example, to charge a 12V starter or service battery integrated in a 24V system.

All models with adjustable output can be connected in parallel to increase the output current.

• Up to five units can be connected in parallel.

Easy to install:

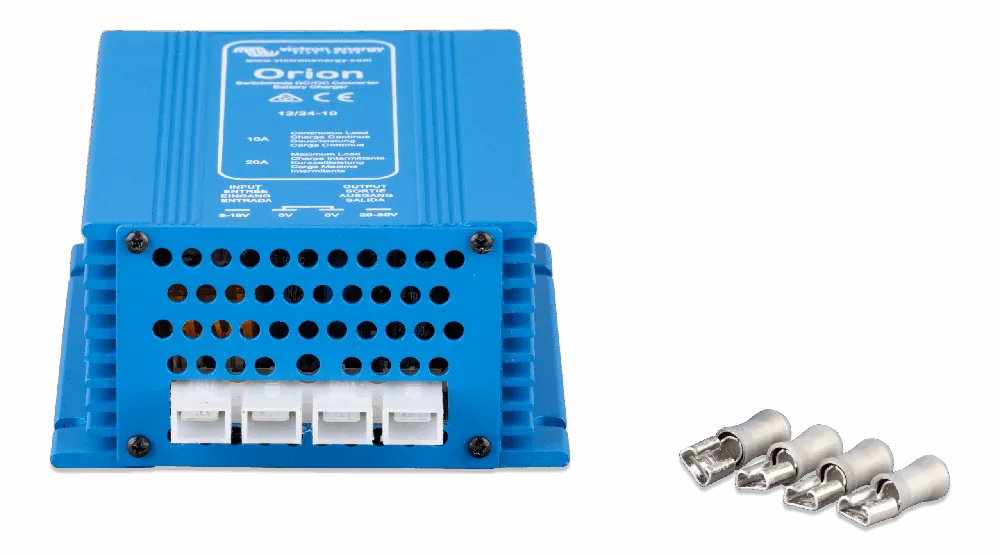

• Delivery includes 4 x 6.3mm female push-in connections.

The Orion Victron non-isolated 12/24-10 high power converter is commonly used:

1. Power supply systems in vehiclesOne of the most common uses of the Orion Victron Converter is in vehicles, such as cars, trucks, boats and caravans. Many of these vehicles use 12V electrical systems, but may also have components or devices that require 24V voltage to operate. The converter allows these 24V devices to be connected to the vehicle’s 12V electrical system.
2. Applications in solar or renewable energy systemsIn solar or renewable energy systems, where 12V and 24V batteries are used, the Orion Victron Converter can be useful to ensure that connected devices and components operate at the correct voltage. For example, it may be necessary to boost the voltage from 12V to 24V to power inverters or 24V battery chargers.
3. Communication systems and electronicsIn telecommunications and electronics applications, a specific voltage is often required to power sensitive equipment. This converter allows the voltage to be adjusted according to the requirements of this equipment, ensuring correct operation and protecting against damage.
4. Use in back-up power systemsVoltage converters can be used in back-up power systems, such as generators and batteries, to ensure compatibility between different components and loads. For example, if you are using a 24 V battery but need to supply a 12 V load, this converter may be essential.

Datasheet Orion Victron non-isolated high power converter 12/24-10 – ORI122410020

View Orion Victron Non-Isolated High Power 12/24-10 Inverter – ORI122410020 datasheet
