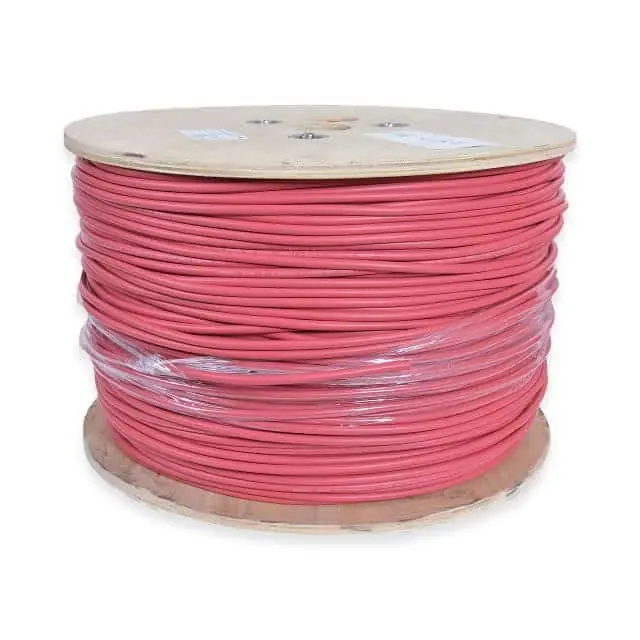

Solar photovoltaic cable HIS SOL H1Z2Z2-K | 4mm² red

Solar photovoltaic cable HIS SOL H1Z2Z2-K | 4mm² red, flexible and suitable for all types of installations, both indoors and outdoors. Suitable for connections between solar panels and between these and the different components of the installation, such as protections, regulators, inverters, etc. Cables resistant to ultraviolet rays and the effect of humidity.

Features

• Improved water resistance; Directly underground
• Compliance with CPR EN50575
• Overall layout
• 25 years estimated time of use
• The cable is shipped with markings per metre of cable.
• Rated voltage: 1.5kV DC and 1.0kV AC
• Maximum allowable operating voltage: 1.8kV DC (2.0kV DC additional internal verification)
• Wire construction: tin-plated copper stranded wire (electrolytic copper) according to IEC 60228 Class 5
• Insulation: Poly-Olefin insulated electrical conductor; Shore hardness D 32
• Outer sheath: XLPO insulated electrical conductor; Shore hardness D 36

Also available in black: Solar cable 4mm² photovoltaic HIS SOL H1Z2Z2-K | black – 1m
