Huawei Luna2000 Lithium Battery 10kWh + BMS – LUNA2000-10-S0

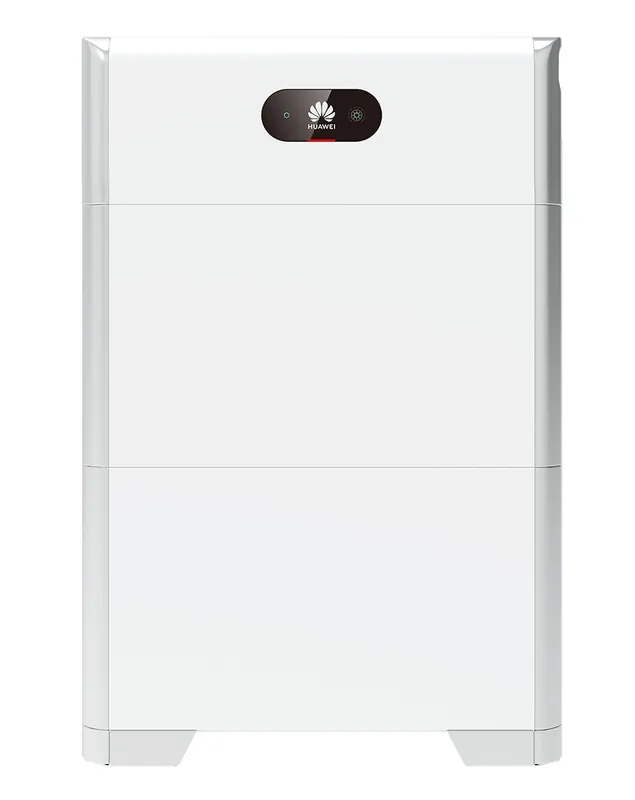

The Huawei Luna2000 10kWh + BMS Lithium Battery – LUNA2000-10-S0 is a high voltage battery compatible with the Huawei KTL single phase L1 and KTL three phase M1 hybrid inverter range. Each battery consists of a BMS controlled module on top and two 5kWh accumulator modules. The Huawei Luna Battery is IP66-rated, has a 10-year manufacturer’s warranty and is scalable, so the system can be expanded to a maximum of 30kWh total storage capacity.

Huawei Luna2000 10kWh Lithium Battery + BMS – LUNA2000-10-S0: Features

• Number of Huawei Luna battery modules: 2
• Usable energy of the Huawei Luna battery: 10kWh
• Maximum power output of Huawei Luna battery: 5kWh
• Peak power output of Huawei Luna battery: 7kWh for 10 seconds
• Huawei Luna battery dimensions: 670 x 150 x 960 mm
• Huawei Luna Battery Weight: 113.8kg
• Huawei Luna Battery Warranty: 10 years (meeting manufacturer’s requirements)

Huawei Luna 2000 Battery Compatibility

The Luna Huawei 2000 10kWh Battery + BMS – LUNA2000-10-S0 is compatible with the range of KTL L1 single-phase inverters from 2 to 6kW and the three-phase KTL-M1 from 3 to 10kW. Communication with the inverter is via RS485 and it also incorporates a CAN connection for parallel operation. It has a small display that indicates the state of charge and a LED to show the operating status.

Easy installation

Its design allows for quick and easy installation and commissioning. All connected devices can be automatically detected with Huawei’s FusionSolar application, increasing the degree of control over the installation.

Scalable

The Huawei Luna2000 10kWh Lithium Battery + BMS – LUNA2000-10-S0 supports power and capacity expansion. Two power control modules can be connected in parallel. One power control module supports a maximum of 3 battery expansion modules.
