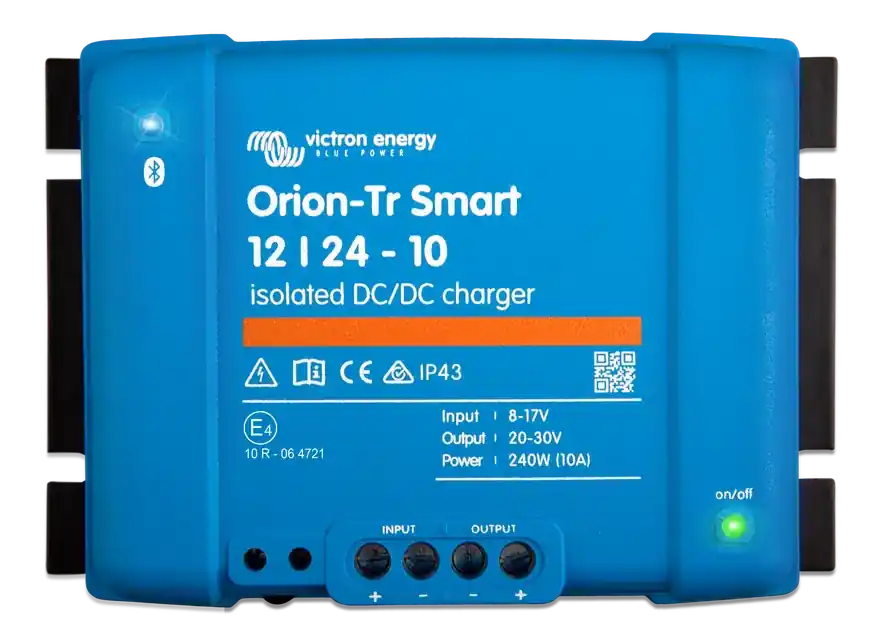

Features of the Victron Orion-Tr Smart 12/24-10A DC-DC Isolated DC-DC Converter – ORI12242424120

Integrated Bluetooth Smart

• Any Bluetooth enabled device can be used to monitor, change settings and update the converter.
• Instant Readout: The application VictronConnect can display the most important data, including warnings and alarms, on the device list page without the need to connect to the product.

Fully programmable

• Battery charging algorithm (configurable) or fixed output.
• Intelligent alternator compatibility: engine running detection mechanism.

3-stage adaptive loading algorithm: initial loading – absorption – floating

• In the case of lead-acid batteries it is important that, if discharges are light, the absorption time is short to avoid overcharging the battery. After a deep discharge, the absorption charging time is automatically increased to ensure a full recharge of the battery.
• In the case of lithium batteries, the absorption time is fixed: 2 hours by default.
• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

The integrated engine shutdown detection will stop the Victron Orion-Tr Smart 12/24-10A DC-DC Isolated DC-DC Converter – ORI12242424120 when the engine is not running. This prevents the starter battery from discharging.

Victron Orion-Tr Smart 12/24-10A DC-DC Isolated DC-DC Converter Remote On/Off Mode – ORI12242424120

A remote On/Off switch can be connected to a two-phase connector. Alternatively, the H (right) terminal of the two-phase connector can be switched to battery positive, or the L (left) terminal of the two-phase connector can be switched to battery negative (or to the vehicle chassis, for example).

Short-circuit-proof model with parallel connection option

An unlimited number of units can be connected in parallel to increase the output current.

Protection against high temperatures

The output current will be reduced when the ambient temperature is high.

Protection IP43

If installed with the screw terminals facing downwards.

Screw terminals

No special tools are required for installation.

Datasheet Victron Orion-Tr Smart 12/24-10A DC-DC Isolated DC-DC Converter – ORI12242424120

View Victron Orion-Tr Smart 12/24-10A DC-DC Isolated DC-DC Converter Datasheet – ORI12242424120
