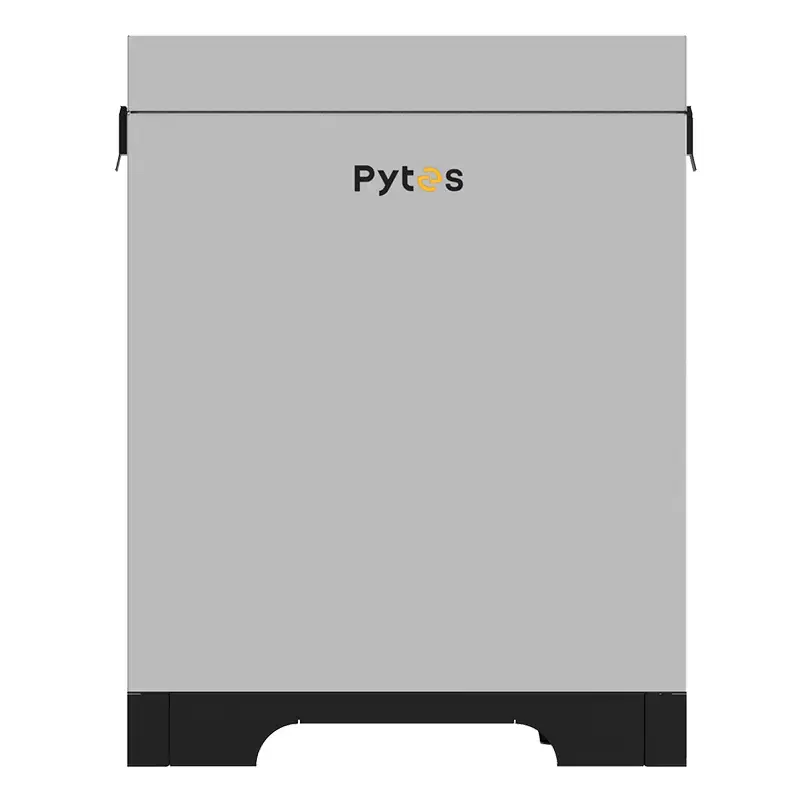

Pytes box for V-Box NEMA3 battery – 110409100177

The box is an elegant and robust home automation solution for domestic energy storage. It is specifically designed to accommodate up to two batteries from the V-BOX-48100V5 series, each with a capacity of 5.12 kWh, allowing for a total installed capacity of 10.24 kWh (with 9.22 kWh usable).
In addition to its capacity, it offers an ideal combination of flexibility, security and integration with solar or back-up systems. This makes it perfect for those looking for an aesthetically pleasing, long-lasting installation with the possibility of future expansion.

Features of the Pytes Box for V-Box NEMA3 battery – 110409100177

  • Compact dimensions: 52.1 cm (L) x 43.1 cm (W) x 64.7 cm (H). It weighs approximately 30 kg empty and approximately 120 kg with batteries.
  • Neat aesthetics: constructed from galvanised steel with a white finish.
  • Passive ventilation: fan-less, allowing for quiet operation.
  • NEMA3 protection: for installation in outdoor areas protected from the sun or rain
  • Plug-and-play installation: fast and uncomplicated installation by a qualified installer
  • Safe and certified technology (LFP, UL, CE).
Features Specifications
Model R-BOX Base
Compatible batteries Up to 2 × V‑BOX‑48100V5 (5.12 kWh each)
Total rated capacity 10,24 kWh
Useful capacity 9.22 kWh
Extensibility Up to 3 units in parallel (30.72 kWh)
Battery type Pytes V‑BOX‑48100V5 battery
Nominal voltage 51,2 V
Max. charge/discharge current 100 A
Communication CAN / RS485
Environmental protection NEMA 3 (For outdoor use protected from direct rain and sunlight)
Assembly Wall or floor
Cabinet material Galvanised steel
Ventilation Passive (no fans, silent operation)
Dimensions (L × W × H) 52.1 cm x 43.1 cm x 64.7 cm
Height with base 71.70 cm
Weight (approximate) ~30 kg empty / ~120 kg with batteries
Charging temperature 0 °C to 45 °C
Discharge temperature -10 °C to 50 °C
Maximum recommended altitude 2 000 m
Useful life cycles Up to 6 000 cycles (with 80 % depth of discharge)
Guarantee 10 years
Certifications UL1973, CE, UN38.3
Recommended application Domestic use, energy back-up, solar self-consumption
